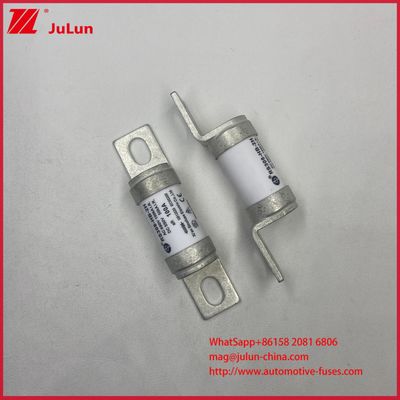

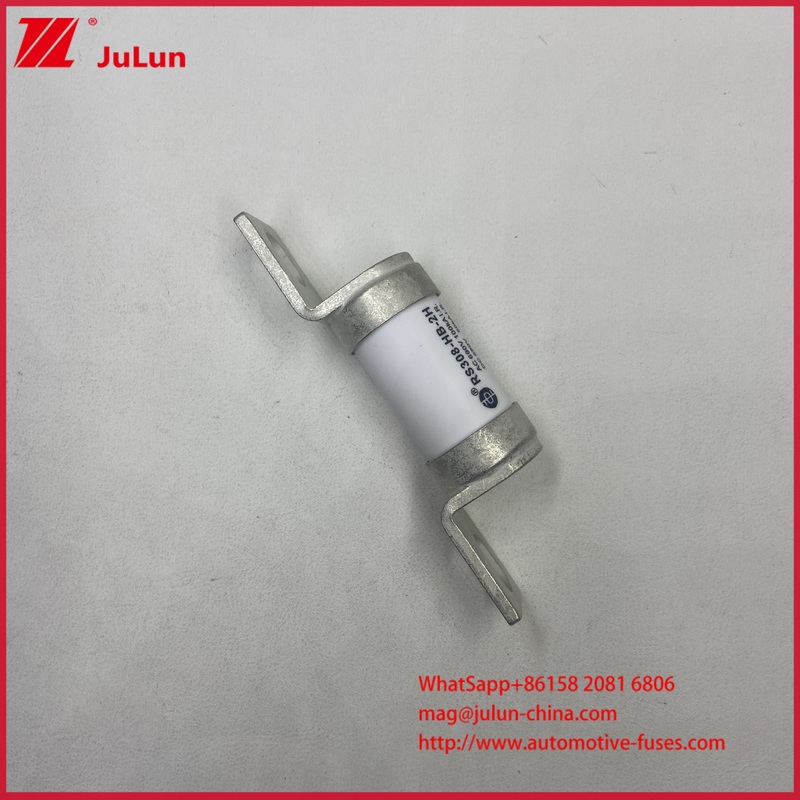

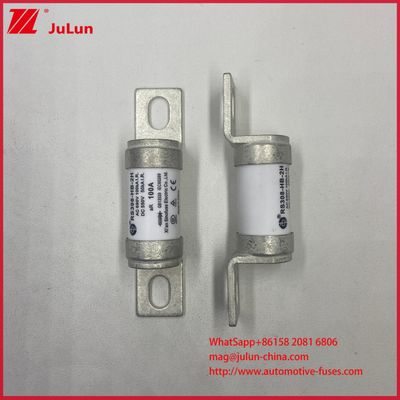

Ceramic Automotive aR RS308-HB 32A 40A Fuses M6 M8 Installation Bolt 550VDC 690VAC
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | SINO FUSE |
| 인증: | UL |
| Model Number: | RS308-HB-2H |
결제 및 배송 조건:
| Minimum Order Quantity: | 10 |
|---|---|
| 가격: | 3~5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
상세 정보 |
|||
| 성과는 다음을 가리킨다.: | IEC60269 및 환경 신뢰성은 ISO8820, JASO D622 및 GB/T31465를 준수합니다. | 응용 제품: | EV 견인 시스템, 전력 변환, 에너지 저장, 자동차 충전기 등 |
|---|---|---|---|
| 설치 볼트: | M6 M8 | 파괴 용량: | AC100KA@COSΦ0.2,DC50KA@L/R≤10ms |
| 정격전류: | 10A ~ 710A | 재료: | 세라믹 구리 은 석영 모래 금 |
| 장착 방법: | 나사 볼트 | 설치 모드: | 추천된 튼튼한 토크 |
| 강조하다: | Ceramic automotive fuses 32A 40A,Ceramic fuses M6 M8 bolt installation,High voltage ceramic fuses 550VDC |
||
제품 설명
Ceramic Automotive aR RS308-HB 32A 40A Fuses M6 M8 Installation Bolt 550VDC 690VAC
Product Features
- Product Name: Ceramic Automotive Fuses
- Material Composition: Ceramic, Copper, Silver, Quartz Sand, Gold
- Performance Standards: Complies with IEC60269
- Environmental Reliability: Meets ISO8820, JASO D622, and GB/T31465 standards
- Feature: Small size with high current rating for short circuit protection
- Installation Mode: Recommended tight torque for secure fitting
- Rated Current Range: 10A to 710A
- Rated Voltage: AC690V / DC550V
- Applicable for: Energy Storage Capacitor protection
- Designed for: Ceramic Vehicle Fuses for automotive applications
Technical Parameters
| Performance | IEC60269 |
|---|---|
| Environmental Reliability | Complies With ISO8820, JASO D622, And GB/T31465 |
| Mounting Method | SCREW BOLT |
| Rated Voltage | AC690V/DC550V |
| Rated Current | 10A To 710A |
| Material | Ceramic, Copper, Silver, Quartz Sand, Gold |
| Application Product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Usage Category | AR |
| Installation Bolt | M6, M8 |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Breaking Capacity | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms |
Applications
The SINO FUSE Ceramic Automotive Fuses, model number RS308-HB-2H, are specifically designed to meet the demanding requirements of modern automotive and electric vehicle applications. Manufactured in China and certified by UL, these fuses offer reliable protection in high-voltage environments, with a rated voltage of AC690V/DC550V.
One of the primary application occasions for the SINO FUSE RS308-HB-2H is in electric vehicles drive the power system. As electric vehicles increasingly rely on advanced power systems, these ceramic fuses provide essential overcurrent protection to maintain system integrity and prevent damage.
Additionally, these automotive components are widely used in power conversion and energy storage systems. The fuses protect sensitive electronic circuits from short circuits and overloads, contributing to the overall reliability and safety of these systems.
Furthermore, the SINO FUSE ceramic fuses are also suitable for car chargers and other automotive electrical accessories. Their environmental reliability complies with ISO8820, JASO D622, and GB/T31465 standards, ensuring that they perform consistently under various temperature and humidity conditions.
Support and Services
- Installation: Always replace fuses with the same type and rating as specified by the vehicle manufacturer.
- Handling: Handle ceramic fuses with care to avoid physical damage and moisture exposure.
- Troubleshooting: Inspect circuits for underlying issues if fuses blow repeatedly.
- Replacement: Use genuine Ceramic Automotive Fuses from authorized suppliers.
- Disposal: Dispose of blown fuses according to local electronic waste regulations.
- Warranty: Standard warranty against manufacturing defects included.
